| Item Name | Shank Taper | Point Style | Internal Female Style | d mm | d1 mm | D mm | D1 mm | L1 mm | L2 mm | L3 mm | L mm | Max. Job Wt.Kg. | Conc. Error mm | Max. RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

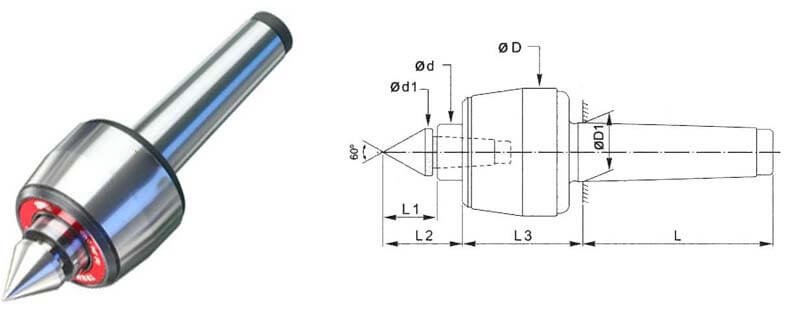

| CNC Heavy Duty R Model MT3 Interchangeable Stub Point Revolving Center For High Speed Applications as in CNC Turning Lathes | MT-3 | Stub Point | 1:10 | 28 | 24 | 62 | 23.825 | 28.0 | 38.0 | 64.5 | 81.0 | 100 | 0.015 | 4500 |
| CNC Heavy Duty R Model MT4 Interchangeable Stub Point Revolving Center For High Speed Applications as in CNC Turning Lathes | MT-4 | Stub Point | 1:10 | 32 | 28 | 68 | 31.267 | 32.5 | 42.5 | 65.0 | 102.5 | 110 | 0.015 | 3450 |
| CNC Heavy Duty R Model MT5 Interchangeable Stub Point Revolving Center For High Speed Applications as in CNC Turning Lathes | MT-5 | Stub Point | 1:10 | 38 | 34 | 87 | 44.399 | 41.0 | 51.0 | 83.0 | 129.5 | 175 | 0.015 | 2700 |
Brand: ToolsEngg : Plant 1
Weight: 1.20kg
Item Name
Shank Taper
Point Style
Internal Female Style
d
mm
d1
mm
D
mm
D1
mm
L1
mm
L2
mm
L3
mm
L
mm
Max.
Job
Wt.Kg.
Conc.
Er..
$128.32 USD
Brand: ToolsEngg : Plant 1
Weight: 1.20kg
Item Name
Shank Taper
Point Style
Internal Female Style
d
mm
d1
mm
D
mm
D1
mm
L1
mm
L2
mm
L3
mm
L
mm
Max.
Job
Wt.Kg.
Conc.
Er..
$125.58 USD
Brand: ToolsEngg : Plant 1
Weight: 1.20kg
Item Name
Shank Taper
Point Style
Internal Female Style
d
mm
d1
mm
D
mm
D1
mm
L1
mm
L2
mm
L3
mm
L
mm
Max.
Job
Wt.Kg.
Conc.
Er..
$216.22 USD
Showing 1 to 3 of 3 (1 Pages)
