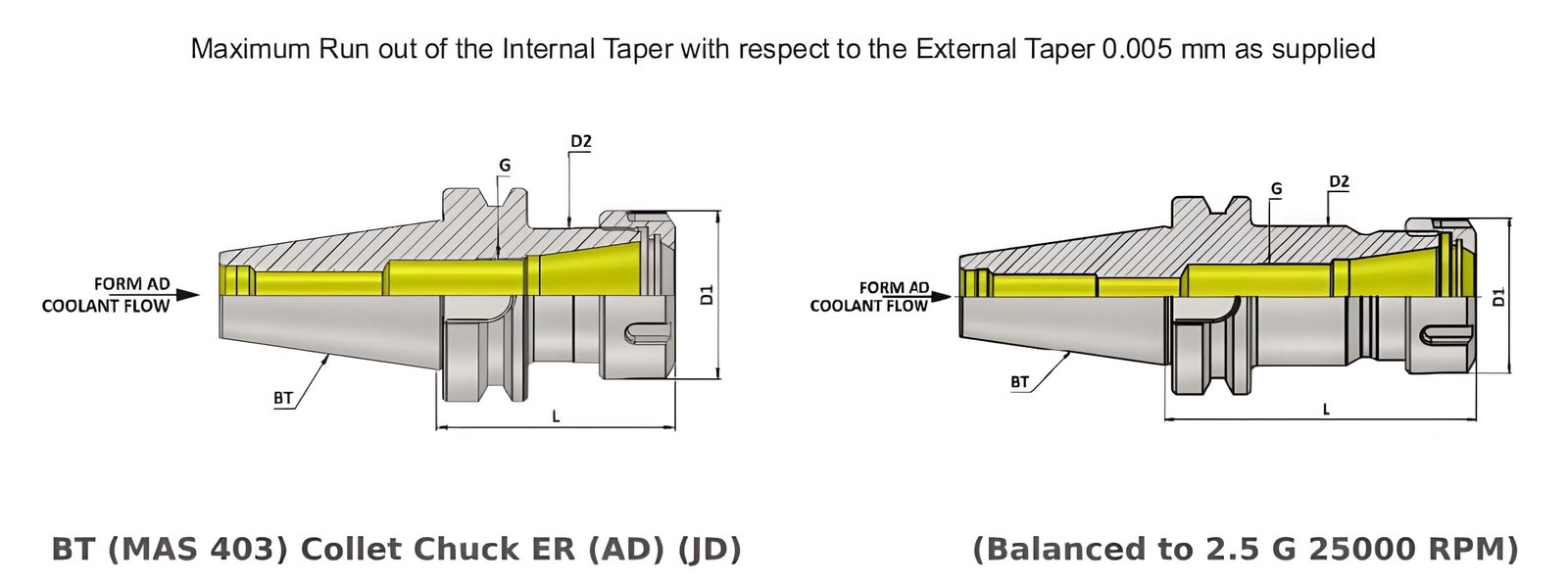

| Item Name | ISO | Suitable Collet | Collet Capacity | D1 | G | L | Nut | Spanner |
|---|---|---|---|---|---|---|---|---|
| BT40 ER16 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 32 | M10x1 | 70 | UM/ER16 | E16 |
| BT40 ER16 070 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 32 | M10x1 | 70 | UM/ER16 | E16 |
| BT40 ER16 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 32 | M10x1 | 160 | UM/ER16 | E16 |
| BT40 ER16 100 ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 32 | M10x1 | 160 | UM/ER16 | E16 |
| BT40 ER16 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 32 | M10x1 | 160 | UM/ER16 | E16 |
| BT40 ER20 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 35 | M10x1 | 70 | UM/ER20 | E20 |
| BT40 ER20 070 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 35 | M10x1 | 70 | UM/ER20 | E20 |
| BT40 ER20 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 35 | M10x1 | 100 | UM/ER20 | E20 |
| BT40 ER20 100 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 35 | M10x1 | 100 | UM/ER20 | E20 |
| BT40 ER20 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 35 | M10x1 | 160 | UM/ER20 | E20 |
| BT40 ER20 160 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 35 | M10x1 | 160 | UM/ER20 | E20 |
| BT40 ER25 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 42 | M18x1 | 70 | UM/ER25 | E25 |
| BT40 ER25 070 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 42 | M18x1 | 70 | UM/ER25 | E25 |
| BT40 ER25 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 42 | M18x1 | 100 | UM/ER25 | E25 |
| BT40 ER25 100 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 42 | M18x1 | 100 | UM/ER25 | E25 |
| BT40 ER25 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 42 | M18x1 | 160 | UM/ER25 | E25 |
| BT40 ER25 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 42 | M18x1 | 160 | UM/ER25 | E25 |
| BT40 ER32 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER32 | 2.0-20 | 50 | M22x1.5 | 70 | UM/ER32 | E32 |
| BT40 ER32 070 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER32 | 2.0-20 | 50 | M22x1.5 | 70 | UM/ER32 | E32 |
| BT40 ER32 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER32 | 2.0-20 | 50 | M22x1.5 | 100 | UM/ER32 | E32 |
| BT40 ER32 100 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER32 | 2.0-20 | 50 | M22x1.5 | 100 | UM/ER32 | E32 |
| BT40 ER32 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER32 | 2.0-20 | 50 | M22x1.5 | 160 | UM/ER32 | E32 |
| BT40 ER32 160 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER32 | 2.0-20 | 50 | M22x1.5 | 160 | UM/ER32 | E32 |
| BT40 ER40 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER40 | 3.0-26 | 63 | M30x1.5 | 70 | UM/ER40 | E40 |
| BT40 ER40 070 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER40 | 3.0-26 | 63 | M30x1.5 | 70 | UM/ER40 | E40 |
| BT40 ER40 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER40 | 3.0-26 | 63 | M30x1.5 | 100 | UM/ER40 | E40 |
| BT40 ER40 100 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER40 | 3.0-26 | 63 | M30x1.5 | 100 | UM/ER40 | E40 |
| BT40 ER40 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER40 | 3.0-26 | 63 | M30x1.5 | 160 | UM/ER40 | E40 |
| BT40 ER40 160 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER40 | 3.0-26 | 63 | M30x1.5 | 160 | UM/ER40 | E40 |
| BT40 ER50 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER50 | 10.0-34 | 78 | M16x2 | 100 | UM/ER50 | E50 |
| BT40 ER50 100 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER50 | 10.0-34 | 78 | M16x2 | 100 | UM/ER50 | E50 |
| BT40 ER16M 120 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 22 | M10x1 | 120 | ER16M | E16M |
| BT40 ER16M 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 22 | M10x1 | 160 | ER16M | E16M |
| BT40 ER25M 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 35 | M18x1 | 160 | ER25M | E25M |
| BT40 ER20M 120 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 28 | M10x1 | 120 | ER20M | E20M |
| BT40 ER20M 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 28 | M10x1 | 160 | ER20M | E20M |
| BT40 ER25M 120 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 35 | M18x1 | 120 | ER25M | E25M |
| BT40 ER16M 120 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 22 | M10x1 | 120 | ER16M | E16M |
| BT40 ER16M 160 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER16 | 0.5-10 | 22 | M10x1 | 160 | ER16M | E16M |
| BT40 ER20M 120 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 28 | M10x1 | 120 | ER20M | E20M |
| BT40 ER20M 160 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER20 | 1.0-13 | 28 | M10x1 | 160 | ER20M | E20M |
| BT40 ER25M 120 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 35 | M18x1 | 120 | ER25M | E25M |
| BT40 ER25M 160 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499) | 40 | ER25 | 1.0-16 | 35 | M18x1 | 160 | ER25M | E25M |
-30 %
Brand: ToolsEngg
Weight: 1.35kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER11M 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G2.5 25000 rpm) (DIN 6499)
40
ER11
..
$65.86 USD $94.08 USD
-30 %
Brand: ToolsEngg
Weight: 1.35kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER11M 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G2.5 25000 rpm) (DIN 6499)
40
ER11
..
$80.75 USD $115.36 USD
-30 %
Brand: ToolsEngg
Weight: 1.35kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER11M 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G2.5 25000 rpm) (DIN 6499)
40
ER11
..
$101.76 USD $145.38 USD
-250x250w.png "BT40 ER16 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499)")
-30 %
Brand: ToolsEngg
Weight: 1.29kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499)
..
$39.26 USD $56.10 USD
-30 %
Brand: ToolsEngg
Weight: 1.29kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16 070 ER Collet Chuck (AD) (Balanced to G6.3 15000 rpm) (DIN 6499)
40
ER16
&n..
$34.06 USD $48.67 USD
-30 %
Brand: ToolsEngg
Weight: 1.40kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499)
..
$45.38 USD $64.82 USD
-30 %
Brand: ToolsEngg
Weight: 1.46kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16 100 ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499)
40
ER16
0..
$38.22 USD $54.61 USD
-30 %
Brand: ToolsEngg
Weight: 1.75kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16 160 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G6.3 15000 rpm) (DIN 6499)
..
$69.47 USD $99.25 USD
-30 %
Brand: ToolsEngg
Weight: 1.76kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16 160 ER Collet Chuck (AD) (Balanced to G 6.3 15000 rpm) (DIN 6499)
40
ER16
0.5-10
..
$63.98 USD $91.41 USD
-30 %
Brand: ToolsEngg
Weight: 1.35kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16M 070 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G2.5 25000 rpm) (DIN 6499)
..
$47.04 USD $67.20 USD
-30 %
Brand: ToolsEngg
Weight: 1.35kg
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16M 100 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G2.5 25000 rpm) (DIN 6499)
..
$47.04 USD $67.20 USD
-30 %
Brand: ToolsEngg
Weight: 1.35kg
BT40 ER16M 120 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499)
Item Name
ISO
Suitable Collet
Collet Capacity
D1
G
L
Nut
Spanner
BT40 ER16M 120 Coolant Through Flange(AD+B) ER Collet Chuck (Balanced to G 2.5 25000 rpm) (DIN 6499)
&nbs..
$53.66 USD $76.66 USD
